Business Unit Thermoset PCM

PCM Mold

Prepreg Compression Molding.
Precision. Performance. Perfection.

PCM

Bridging Precision and Efficiency

PCM (Prepreg Compression Molding) is a high-efficiency manufacturing process that bridges the gap between slow, high-cost autoclave curing and lower-performance injection molding. It utilizes pre-impregnated fiber sheets (Prepreg) which are placed into a heated mold and cured under pressure.

At SUASE MOULD, we design PCM tooling to achieve Net Shape Molding—producing parts that require minimal to no trimming. Our molds ensure precise fiber alignment and excellent surface quality, making them ideal for visible carbon fiber parts in automotive interiors and consumer electronics.

High Fiber Volume

"PCM allows for fiber volume fractions of 50-60%, significantly higher than standard SMC or injection molding, resulting in superior mechanical properties."

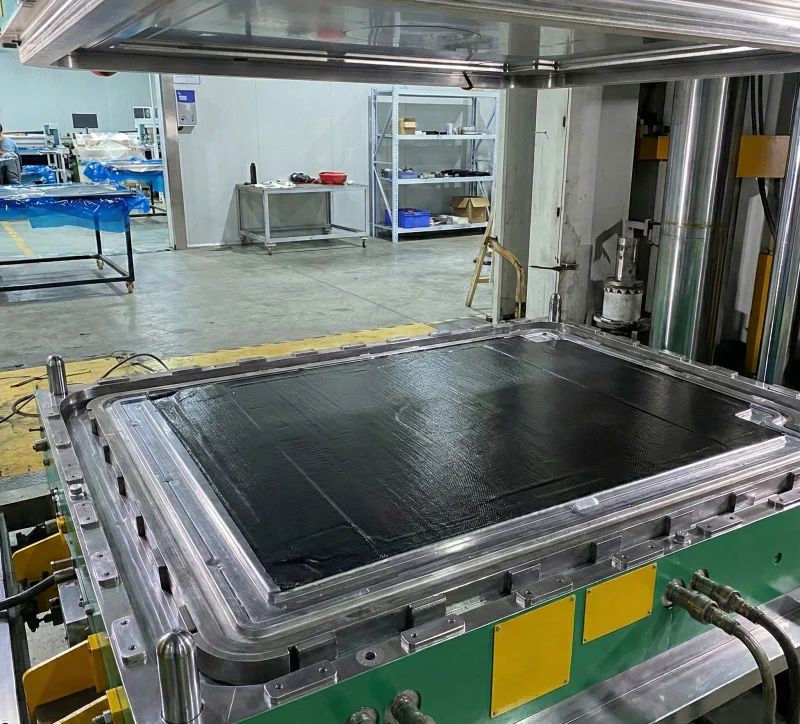

Prepreg Carbon Material
Prepreg Technology

The PCM Process

Rapid curing for mass production of high-performance parts.

1. Cutting

Precision cutting of prepreg sheets (carbon or glass) into 2D patterns.

2. Preforming

Stacking patterns to create a 3D preform, often using automated or manual lay-up.

3. Hot Pressing

The preform is placed in a heated SUASE mold and compressed to cure the resin rapidly.

4. Demolding

Part removal and minimal finishing. Net-shape molding reduces waste.

Tooling Capabilities

Precision engineering for Class-A surfaces.

PCM Mold Parameters

Mold Material P20, 718, NAK80 (High Polish)
Shear Edge High Precision (0.02-0.04mm gap)
Heating System Thermal Oil / Electric (Uniformity ±2°C)
Surface Finish Mirror Polish / Texture
Cycle Time 5 - 15 Minutes

Class-A Surface

PCM molds are polished to a mirror finish, enabling the production of parts with flawless surfaces, often requiring no painting (Visual Carbon).

Rapid Curing

By optimizing mold temperature and pressure, we achieve cure times significantly faster than autoclave processes, enabling medium-to-high volume production.

Net-Shape Accuracy

Precision shear edges and mold closures minimize resin flash, producing parts that are virtually ready for assembly straight out of the mold.

PCM Applications

High-end aesthetics and structural performance.

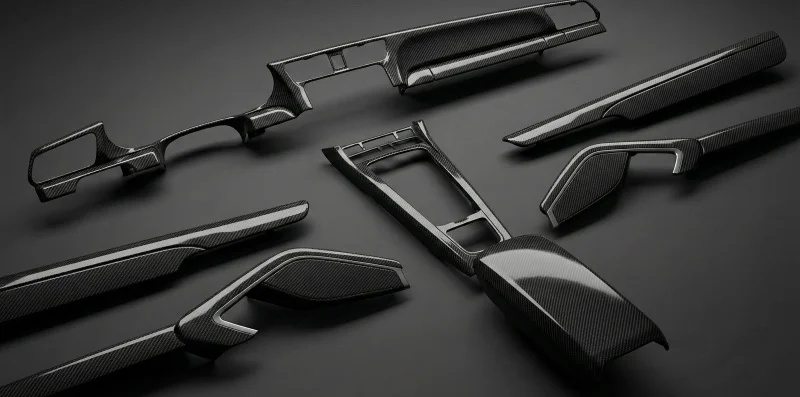

Interior Trim

Interior Decor

Dashboard trims, door inserts, and console covers. Visual carbon fiber look with premium finish.

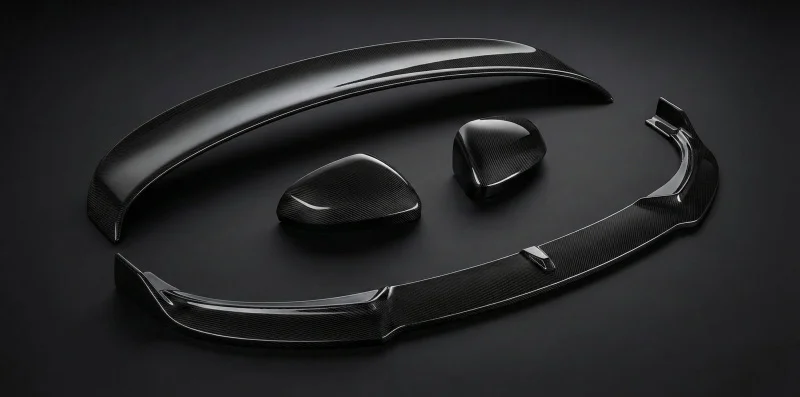

Exterior Parts

Exterior Aero

Spoilers, mirror caps, and splitters. Lightweight and aerodynamically efficient.

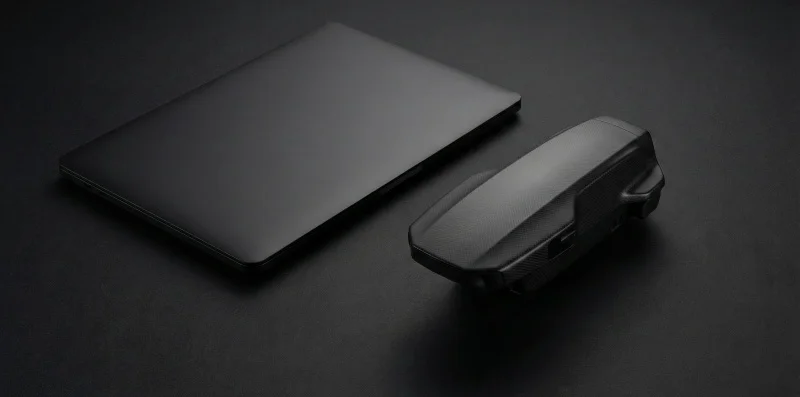

Consumer Electronics

Consumer Electronics

Laptop casings and drone bodies. Ultra-thin walls with high stiffness and EMI shielding properties.

Elevate Your Product with PCM

"PCM offers the perfect balance of performance and production speed for premium composite parts. Partner with SUASE for expert tooling support."
