Process Engineering

Assembly & Fitting

The Art of Perfection.
Where Precision Machining Meets Master Craftsmanship.

The Final Touch of Quality

While CNC machines provide precision, it is the skilled hands of our assembly technicians that breathe life into the mold. At SUASE, our assembly team consists of veteran craftsmen, many with over 20 years of experience in SMC and Injection mold fitting.

We understand that for compression molds, the Shear Edge (fitting gap) is critical to preventing flash. Our rigorous "Blue Matching" process ensures a contact ratio of over 90%, guaranteeing seamless production runs for our clients.

The Final Touch of Quality

Precision Assembly Workflow

Rigorous standards applied to every component, from the core block to the smallest water fitting.

Precision Spotting

Using specialized Die Spotting Presses to simulate clamping. We check the "Blue Match" (ink transfer) to ensure the parting line seals perfectly, preventing flash.

Surface Finishing

From technical grains to SPI-A1 mirror finishes. Our polishing team meticulously removes cutter marks to achieve the required Class-A surface quality.

Complex Mechanisms

Expert installation of hydraulic cylinders, sliders, lifters, and ejector systems. We perform dry-cycle tests to ensure smooth, jam-free movement.

System Verification

High-pressure leak testing for all water, oil, and steam lines. We verify flow rates and thermal efficiency before the mold ever leaves the bench.

Operational Excellence: 6S Management

A clean, organized, and safe workshop is the foundation of high-quality mold assembly. We strictly implement 6S standards to ensure zero defects and zero accidents.

Seiri

Sort

Eliminate unnecessary items.

Seiton

Set in Order

A place for everything.

Seiso

Shine

Clean workspace daily.

Seiketsu

Standardize

Maintain high standards.

Shitsuke

Sustain

Self-discipline & habit.

Safety

Zero Accident

Safety First policy.

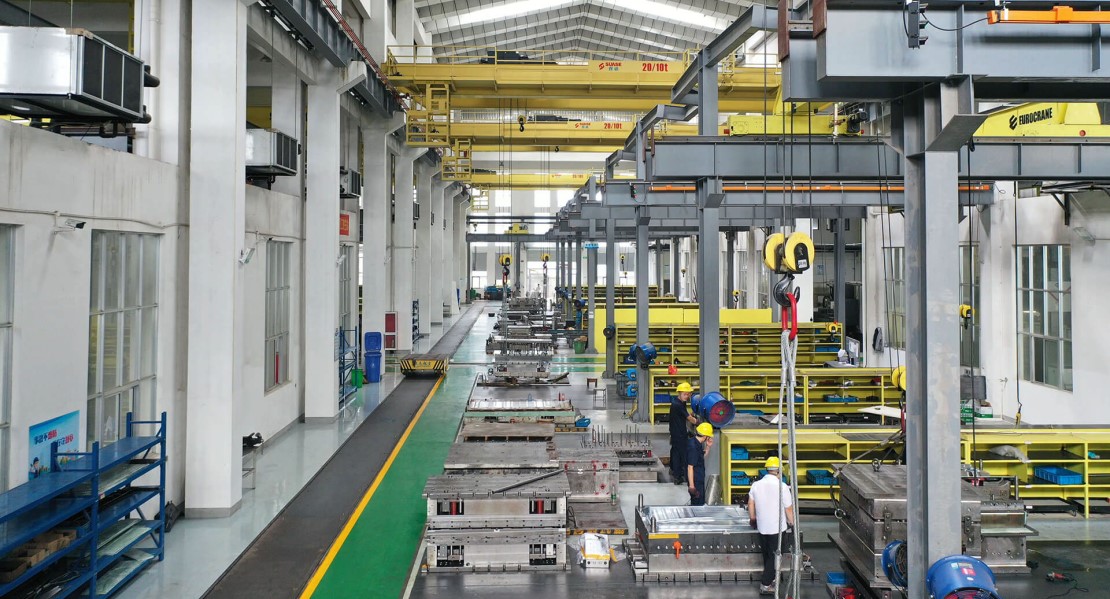

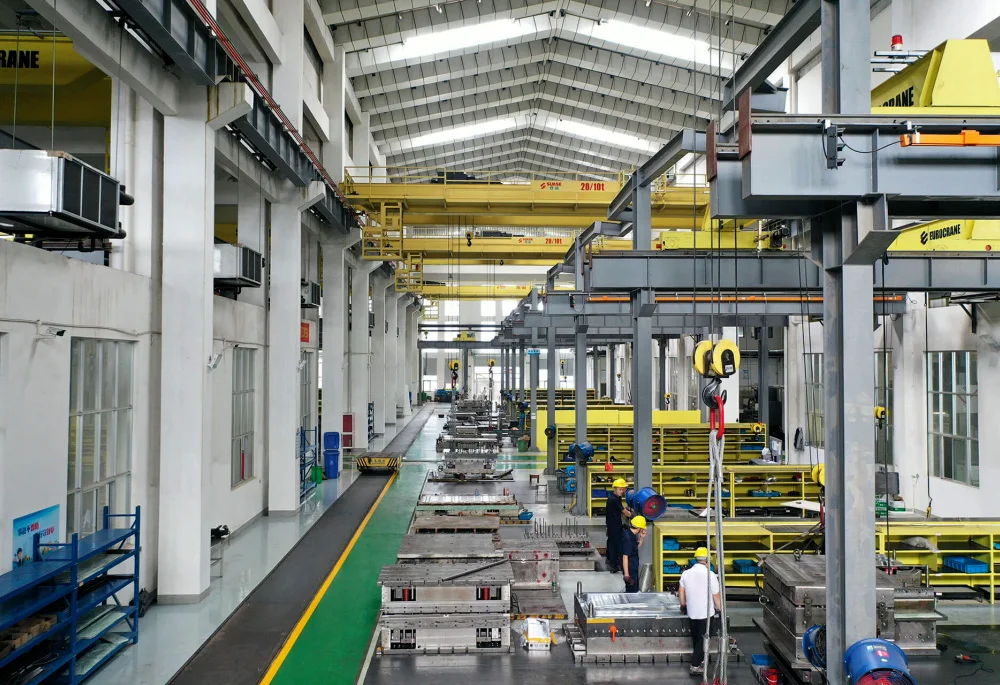

Infrastructure

Large-Scale Assembly Capacity

Handling massive molds requires massive infrastructure. Our assembly workshop is equipped with heavy-duty overhead cranes and specialized spotting machines to handle molds up to 50 tons safely and efficiently.

  • NC Die Spotting Presses: Precise clamping simulation for fitting.

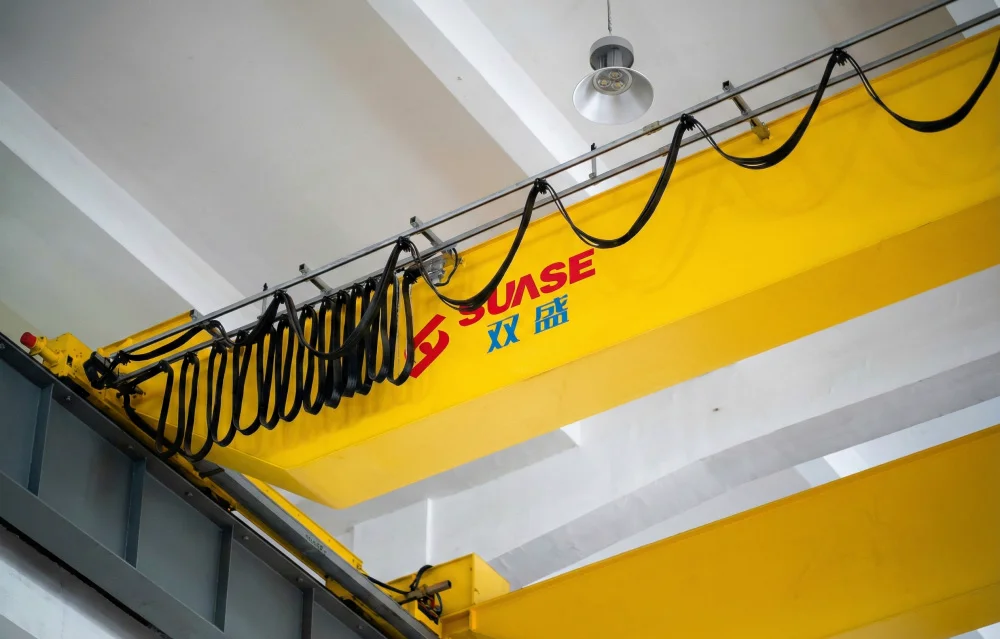

  • Overhead Cranes: 30T / 50T capacity for large truck/bus molds.
  • Dedicated Polishing Rooms: Dust-free zones for optical finishes.
95%
Fit Rate
50T
Max Weight
100%
Leak Tested
24h
Dry Cycle Run

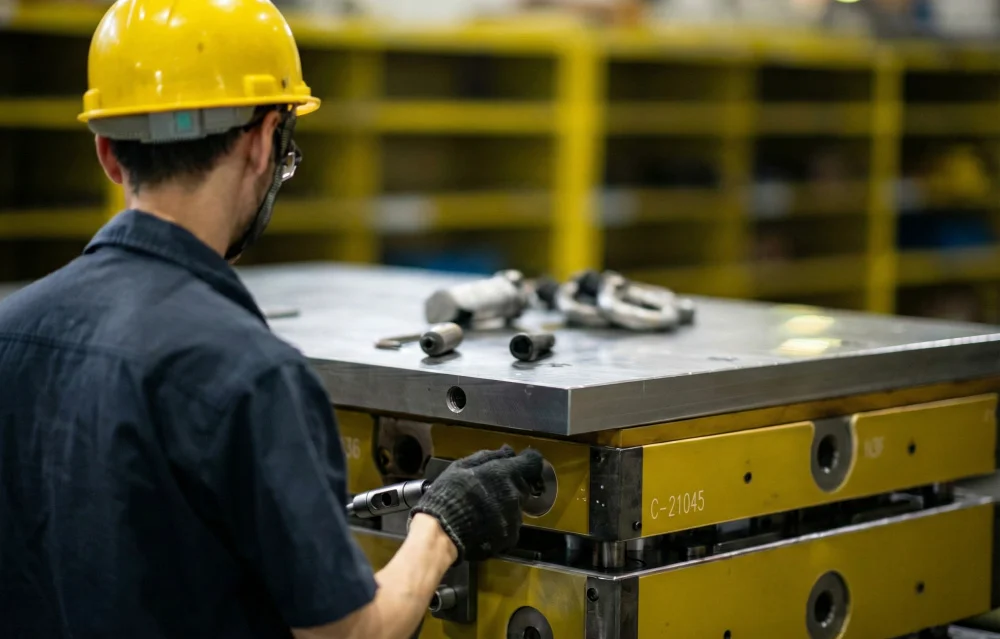

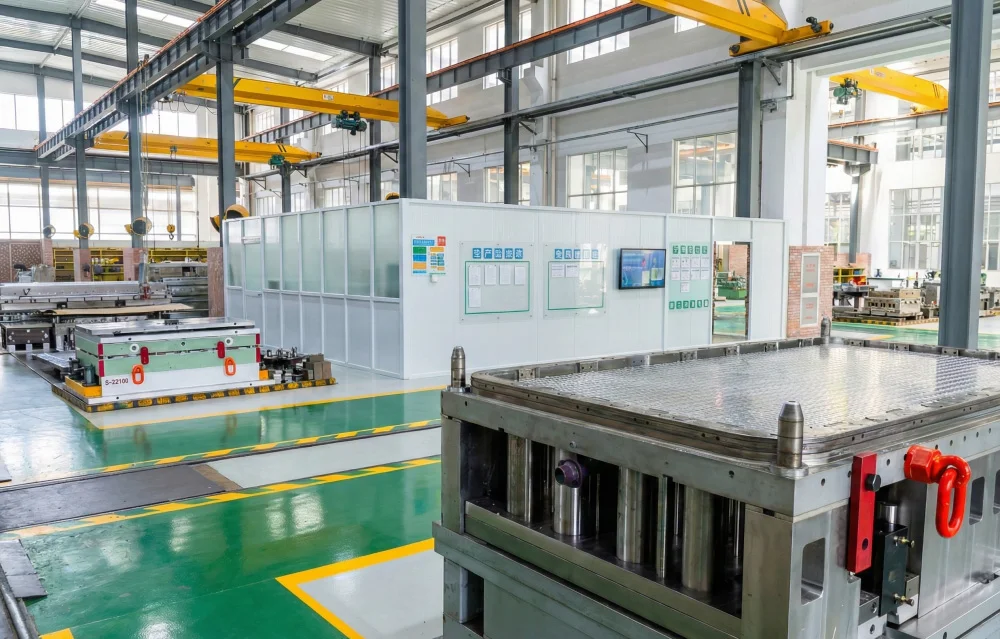

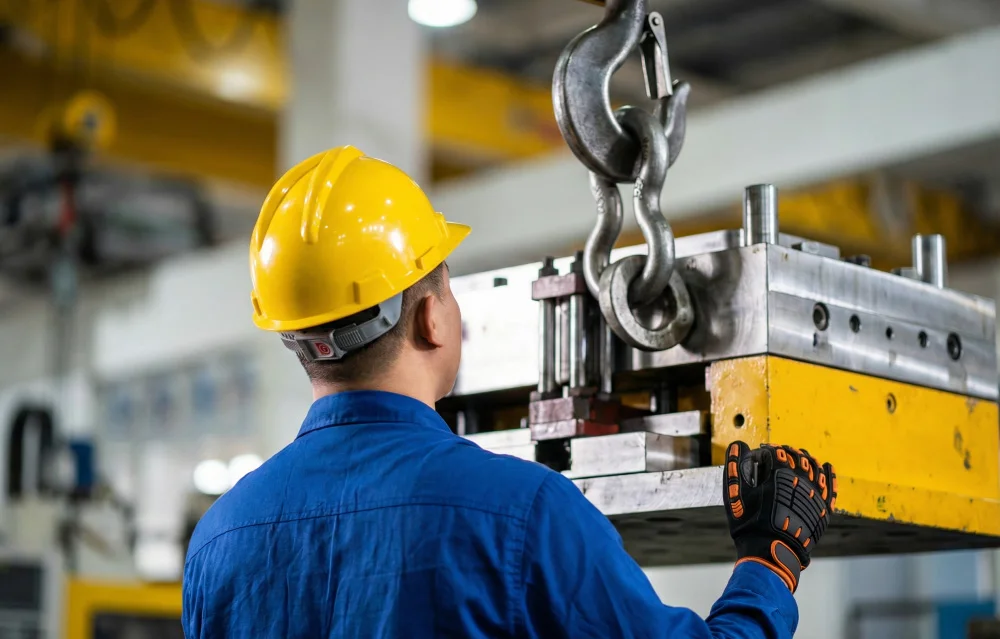

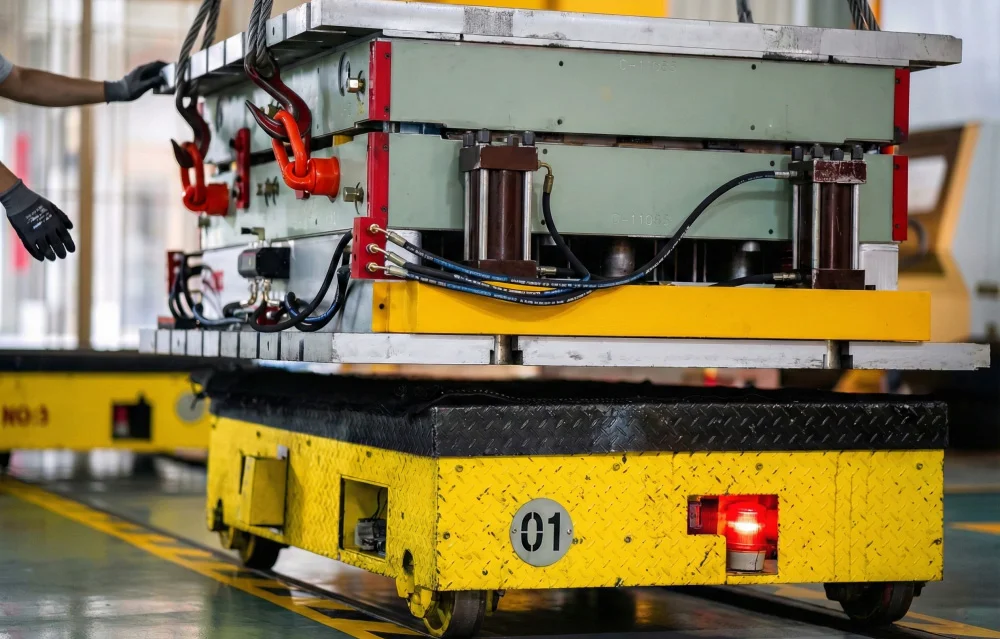

Assembly Gallery

The meticulous process of fitting, assembling, and verifying each mold.

Ready for Production

Our assembly experts ensure your mold arrives production-ready, minimizing startup time at your facility.
