In modern automotive manufacturing, precision is non-negotiable. Checking Fixtures (Gauges) are the critical link between design intent and production reality, verifying GD&T compliance before assembly.

Beyond inspection, SUASE leverages 37 years of tooling expertise to provide a wide range of Functional Fixtures. From Cooling Fixtures that stabilize part dimensions to Punching and Leakage Test tools, we ensure your production line runs smoothly and accurately.

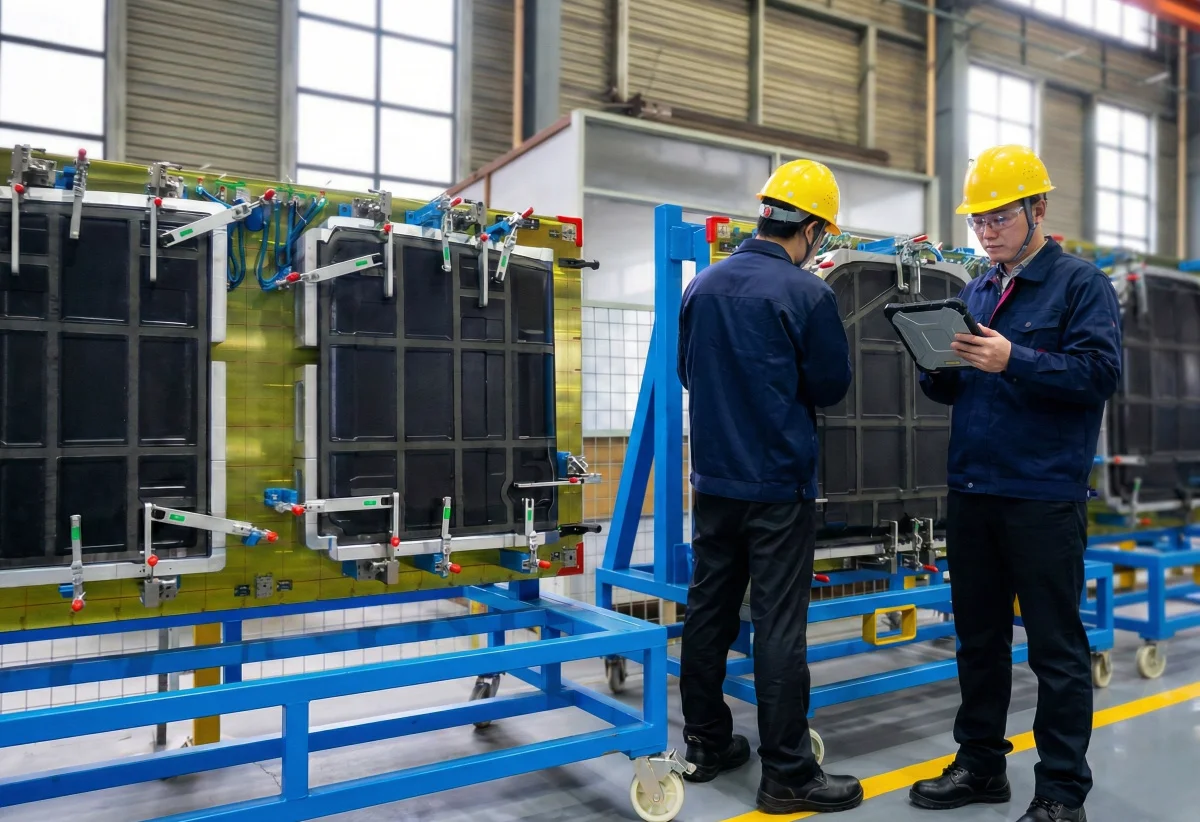

Automotive Checking Fixture

Diverse Fixture Solutions

From quality inspection to post-molding operations.

Inspection Gauge

Including Single Part Gauges, Assembly Fixtures, and Cubing Models. Used to verify surface profiles, trim lines, and hole positions against CAD data.

Cooling Fixture

Essential for preventing warpage in large plastic parts (e.g., bumpers) immediately after demolding. Ensures dimensional stability during the cooling phase.

Functional Tooling

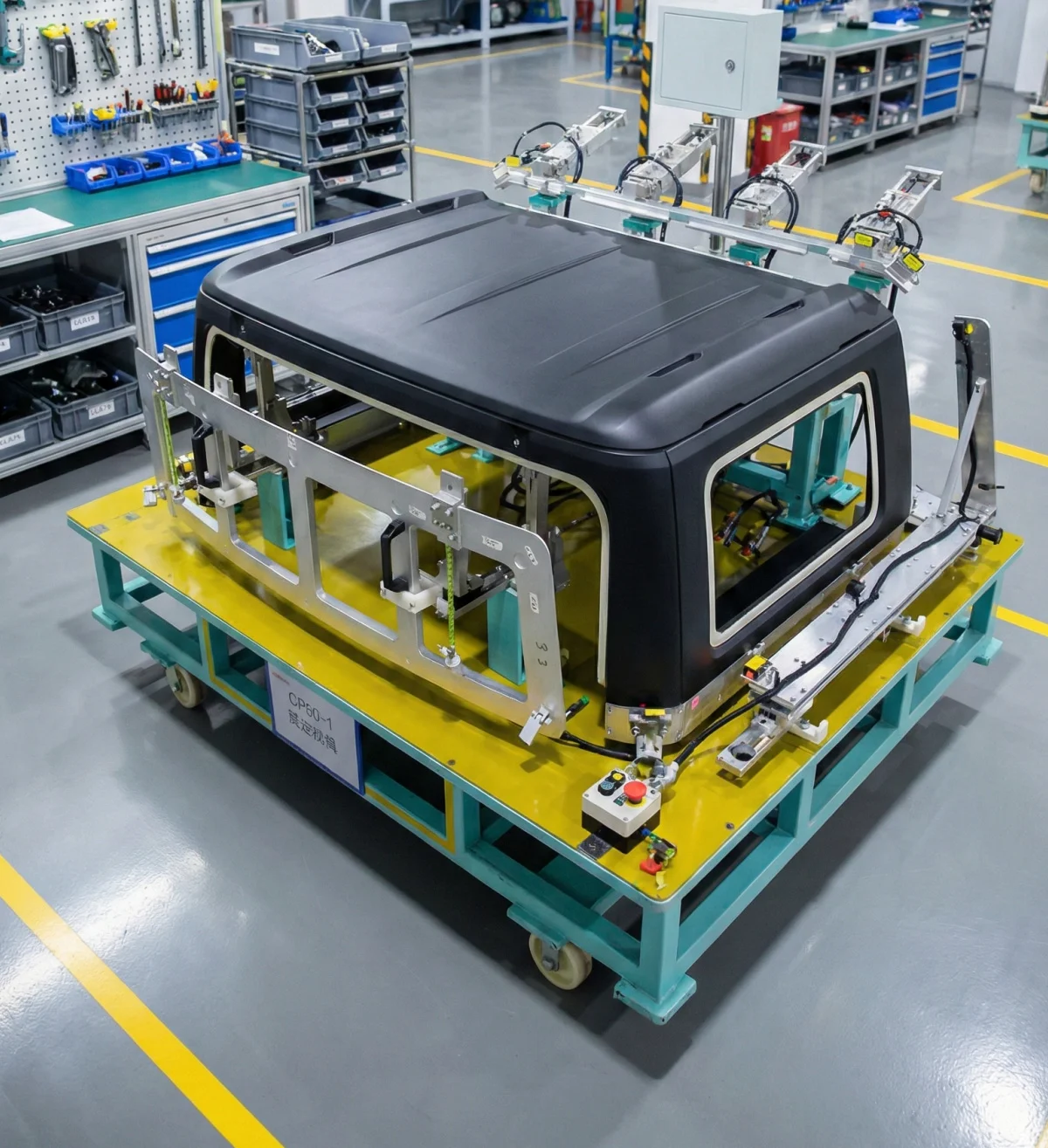

Punching Fixtures for precise hole creation post-molding, and Leakage Test Fixtures for verifying the sealing integrity of tanks and containers.

Advanced Engineering

Innovating with lightweight materials and smart technologies.

Carbon Fiber Structure

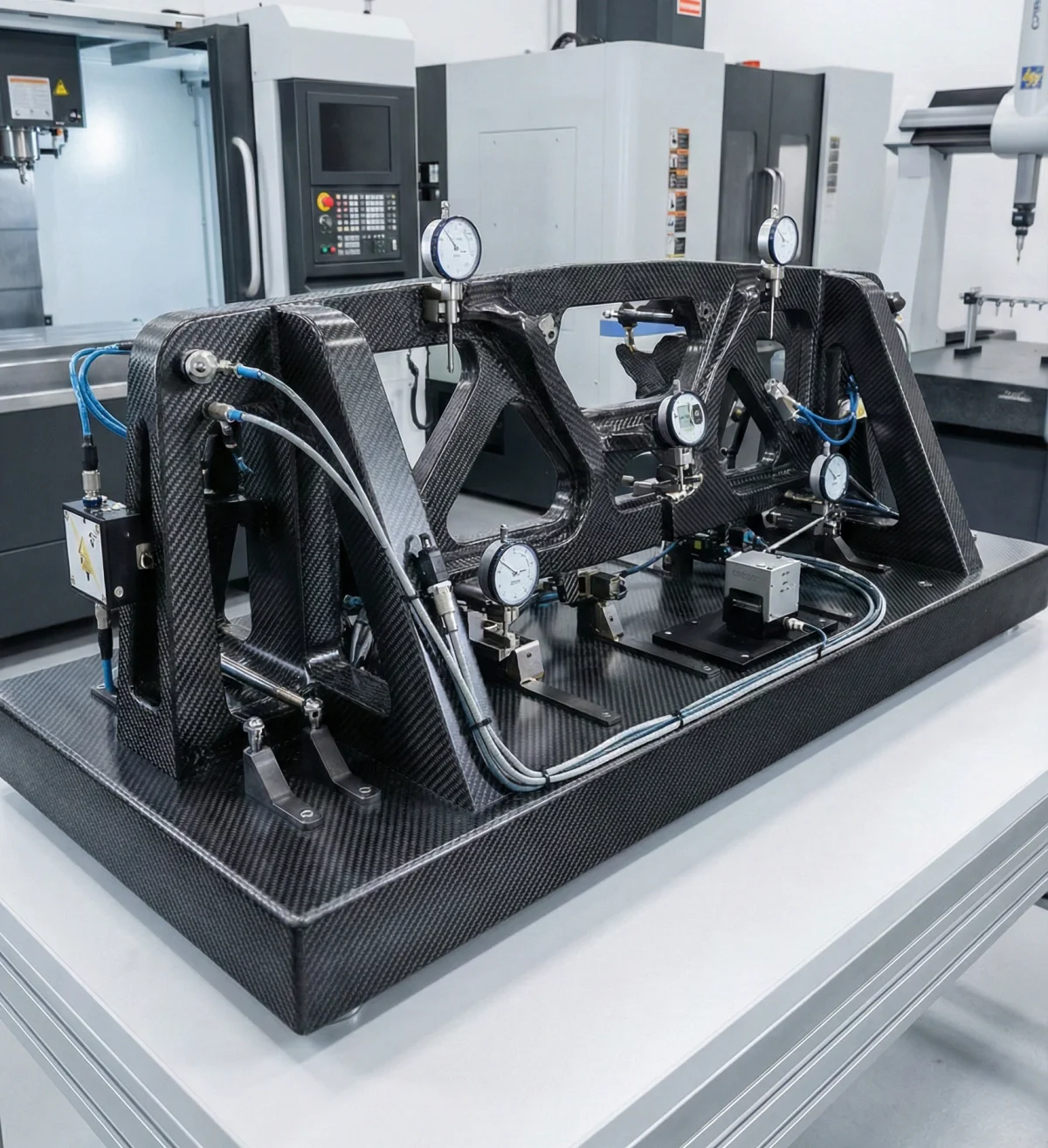

Utilizing carbon fiber for large assembly gauges. Reduces weight by 40% while ensuring near-zero thermal expansion.

Automated Solutions

Integrating pneumatic clamps and sensors for semi-automated checking and functional testing.

Carbon Fiber Gauge
Material

Carbon Fiber Gauge

Functional Fixture
Function

Automated Fixture

Quality Assurance Process

Rigorous verification for every tool we ship.

Design Review

3D Design & Simulation

Precision Machining

5-Axis CNC Milling

Assembly & Tuning

Expert Fitting

CMM Validation

Final Inspection Report

Technical Insights

Why use Cooling Fixtures?

For large plastic parts like bumpers or door panels, thermal contraction after demolding can cause warpage. Cooling fixtures hold the part in its nominal shape during the cooling phase, ensuring the final dimensions are within tolerance.

What is the advantage of Carbon Fiber gauges?

Carbon fiber offers excellent rigidity with minimal weight and near-zero thermal expansion. This makes large gauges easier to handle for operators and maintains accuracy even in environments with fluctuating temperatures.

Can you integrate sensors into fixtures?

Yes. For functional testing fixtures (e.g., leakage test or assembly check), we integrate digital displacement sensors, pressure sensors, and PLC controls to provide Go/No-Go signals and data logging capabilities.
